Application load balance project for Xinjiang Changji Municipal Government applications

Currently, the customer network has multiple operator egress links and lacks rational and effective use of the links, resulting in a state where a single link is running full and the other links are idle. At the same time, the servers were deployed in clusters due to the increase in service volume, and service resources were not properly allocated. Although scale-out was performed, the service quality was not significantly improved. To enhance the external application service capability of Xinjiang Changji Municipal Government and improve user experience, it is necessary to build a comprehensive application delivery system from link to application and from application to security.

Background

With the booming development of e-government, there are an increasing number of web applications for government agencies. At the same time, the public's demand for the efficiency and service quality of government departments is also increasing. As a result, these online platform systems are under increasing pressure in terms of reliability and performance guarantee. In the face of the growing number of applications, upgrading application delivery has become an important construction goal.

Activity & Announcement
Requirement analysis
01

Enhance the external application service capability of Xinjiang Changji Municipal Government and improve user experience.

02

Build a comprehensive application delivery system from link to application and from application to security.

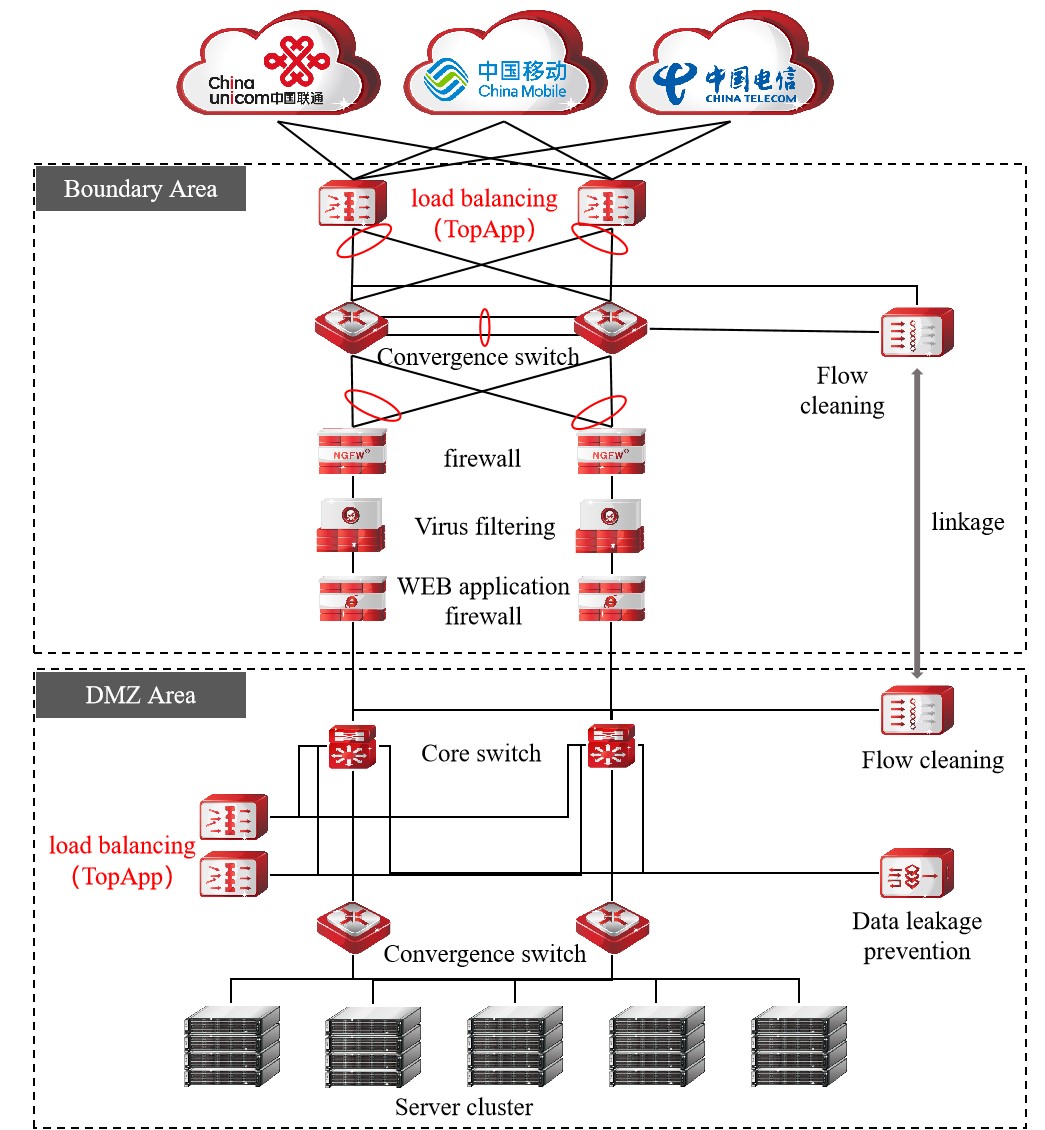

Solution architecture

Currently, the customer network has multiple operator egress links and lacks rational and effective use of the links, resulting in a state where a single link is running full and the other links are idle. At the same time, the servers were deployed in clusters due to the increase in service volume, and service resources were not properly allocated. Although scale-out was performed, the service quality was not significantly improved. To enhance the external application service capability of Xinjiang Changji Municipal Government and improve user experience, it is necessary to build a comprehensive application delivery system from link to application and from application to security.

To this end, Topsec data center solution includes link load balancing and server load balancing, and integrates network optimization technologies such as compression, caching, and page acceleration to accelerate the entire process of business system delivery and improve business system processing efficiency. At the same time, combined with web application firewall, DNS firewall, DDoS attack protection, vulnerability scanning, and other technical means, a full range of cyber security protection is formed.

Value to Customer
Reasonable use of resources

Chain integration is performed on multi-operator links to implement intelligent traffic allocation and help users make full use of bandwidth resources.

Improved access quality

An intra-operator access path is provided to avoid network delay caused by cross-operator access and improve user network access speed and access quality.

SPOF avoidance

When the link is interrupted, the traffic is automatically switched to a normal link to ensure that the user's network access process is not interrupted.

Service bottlenecks addressed

Load balancing and redundancy solutions are provided for multiple application system servers to address hardware performance bottlenecks for a single server.

Business scaling in parallel

Topsec helps users to integrate server hardware resources by adding servers to scale up the processing capability of business systems in parallel.

Continuous and reliable business

Redundant hot standby between multiple servers, real-time monitoring of the business health status, and automatic server software/hardware failover are performed, ensuring that users' business systems provide services for the public in a continuous and reliable manner.
