Topsec Load Balance System

Product Overview

Topsec Load Balancing System V3 (TopApp) provides customers with a high-reliability data center solution, offering link load balancing, server load balancing, and global load balancing. The TopApp product integrates network optimization technologies such as compression, caching, and SSL offloading, accelerating business systems and enhancing system efficiency. Additionally, it combines Web application firewall, DNS firewall, DDoS attack protection, and vulnerability scanning functions to provide comprehensive network security protection, safeguarding the security of customer business systems.

Activity & Announcement

Hot Products Intelligent Computing Cloud Platform
New Products Ask Large Model
New Products LLM Security Gateway
Typical cases CNCC security construction project

Advantages

High Performance

Designed on Topsec's next-generation NGTOS security platform, the TopApp leverages its high-performance architecture. A single hardware appliance can achieve a throughput of up to 120 Gbps, support hundreds of millions of concurrent connections, and process millions of new connections per second, delivering leading processing power and performance in the market.

Integrated Security Protection

Building on the security DNA of the Topsec NGTOS platform, TopApp incorporates comprehensive security technologies. It integrates multiple security functions—including Layer 4-7 access control, DDoS protection, DNS protection, web application security, database protection, and vulnerability scanning—to provide a robust, application-aware security defense layer.

Programmable Traffic Orchestration

TopApp's programmable technology enables flexible orchestration of traffic and real-time processing of application and network events. It supports customizable traffic scheduling policies and session persistence, enhancing business agility and allowing for personalized configuration with low overhead, ensuring services are deployed rapidly and stably.

Applications

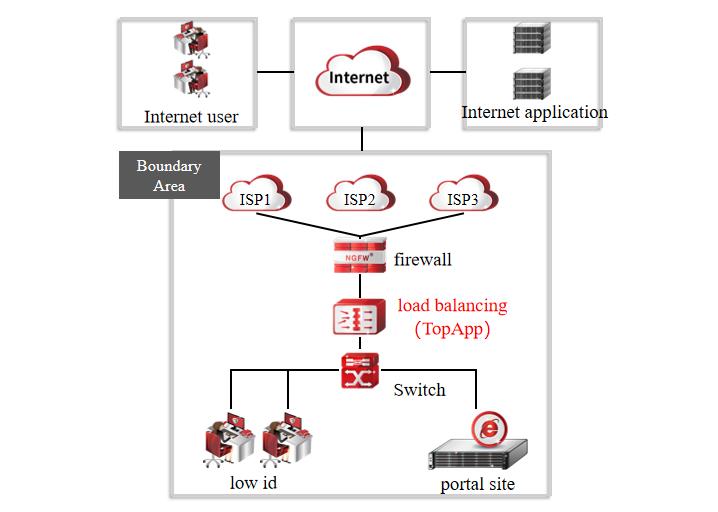

Integrate links of multiple operators to realize intelligent traffic distribution and help customers make full use of bandwidth resources; avoid the risk of single point failure. Provide fast access paths within operators to avoid network delays caused by cross-operator access, and improve customer network access speed and quality.

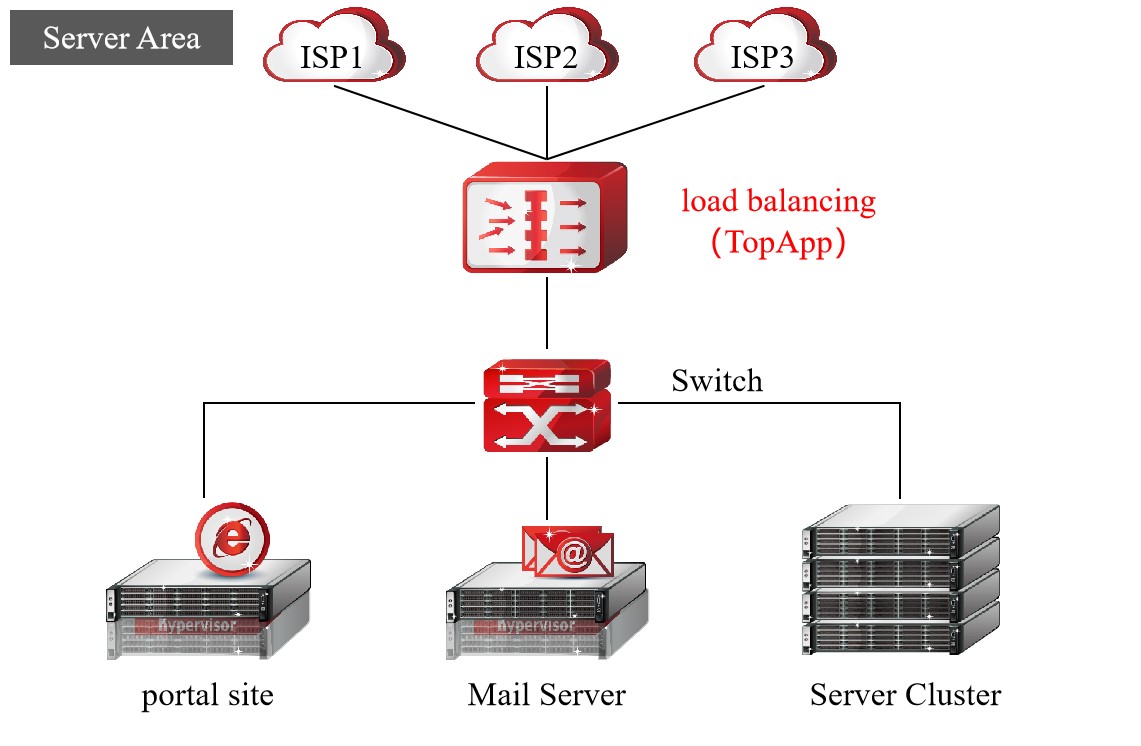

Solve the hardware performance bottleneck of a single server, help customers integrate server hardware resources by adding servers, and expand the processing capacity of the business system in parallel. Realize redundant hot backup between multiple servers, automatic switching of server hardware and software failures, and ensure that customers business systems can provide continuous and reliable services to the outside world.

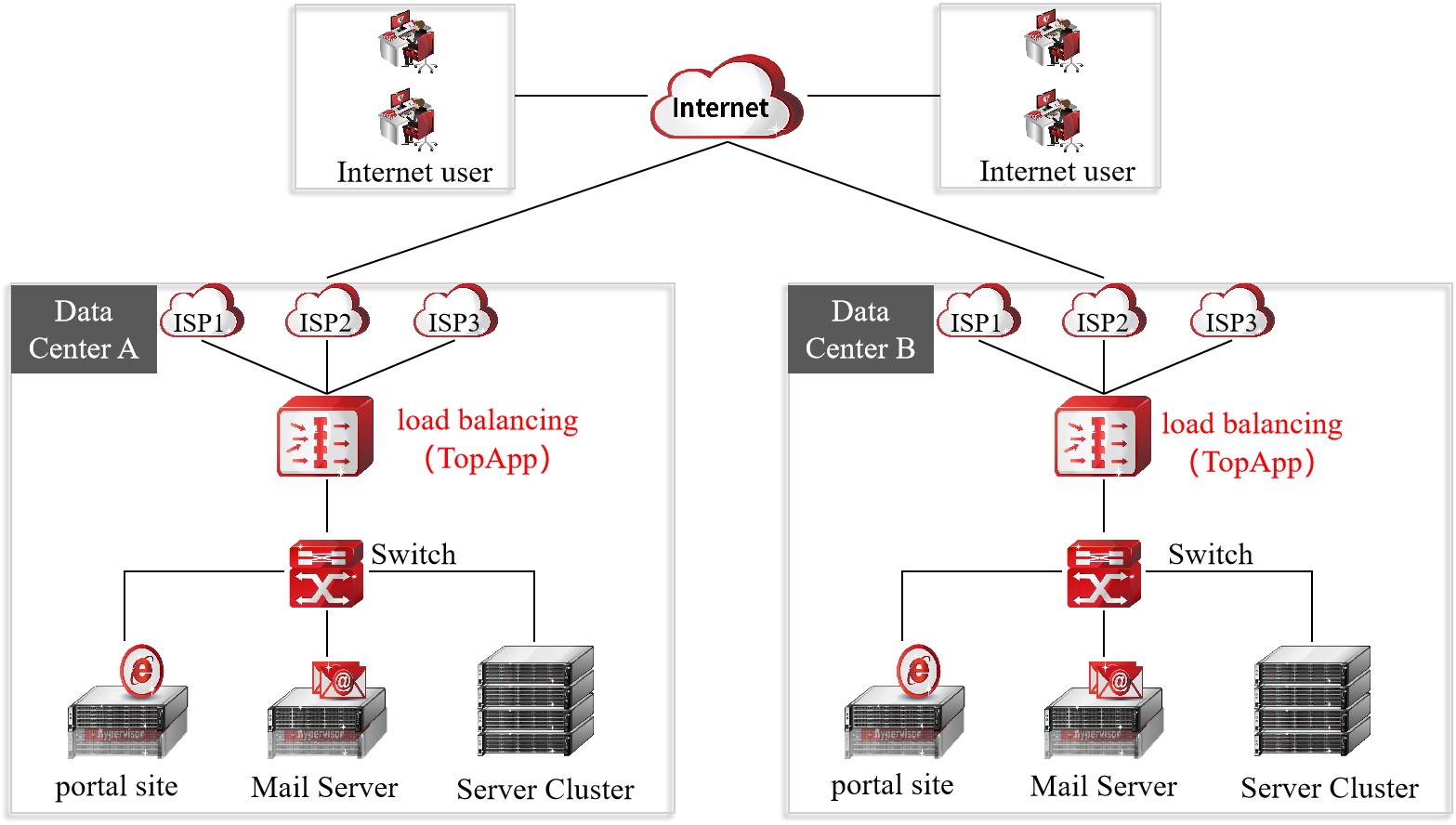

Integrate multi-data center resources across regions, schedule resources between data centers, and global users can access the nearest data center server with one domain name.

Value to Customers

Comprehensive Load Balancing Solutions

TopApp Load Balancer integrates server load balancing, link load balancing, and global load balancing to ensure optimal data transmission in complex networks. It employs various load balancing algorithms tailored to specific scenarios and employs various load balancing algorithms to precisely distribute traffic across links or servers for optimal resource utilization.

IPv6 Migration

TopApp provides IPv6 migration solutions to address IPv4/IPv6 interoperability issues. Based on programmable script technology, effectively addressing transition challenges such as IPv4/IPv6 tunneling, enabling smooth transition between IPv4 and IPv6 networks.

Access Speed Optimization

TopApp incorporates multiple network optimization technologies such as compression caching, one-sided acceleration, TCP connection reuse, database read-write separation, and SSL offloading, significantly improving user access speed.

Business Security Protection

Inheriting the security genes of Topsec NGTOS platform, TopApp offers comprehensive security measures. It integrates access control (Layer 4-7), DDoS attack protection, web security protection, database security protection, and vulnerability scanning, providing customers with a closely aligned application security defense.

Specification

0 > 0 > 0 >

Model	TAD-73120-E	TAD-93320-E
Fixed I/O Ports	8 x GE , 2 x SFP , 2 x SFP+	6 x GE , 4 x SFP , 2 x SFP+
USB Ports	2	2
Form Factor	1U	2U
Dimensions (W × D × H, mm)	440×510×44	426×510×89
Power Specification	150W, Dual AC	300W, Dual AC
Power Supply	AC 100-240V,50/60 Hz	AC 100-240V,50/60 Hz
Weight	12Kg	16kg
Working Temperature	0~40℃	0~45℃
Relative Humidity	20-90%,Non-Condensing	5~95%, Non-Condensing

Success Case

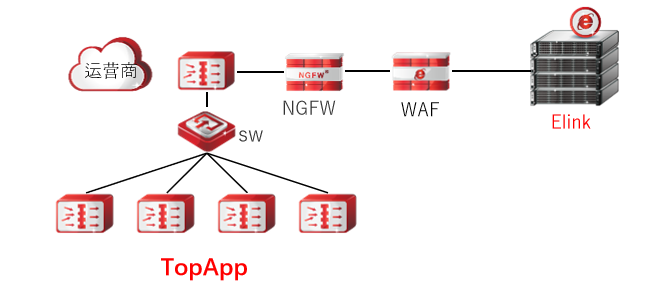

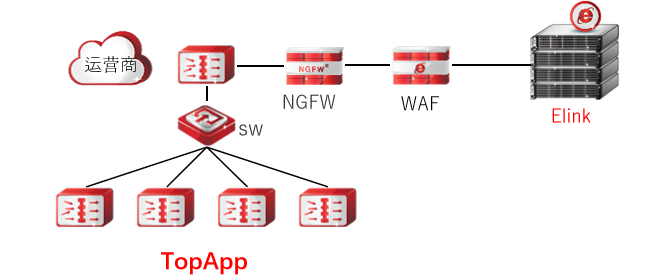

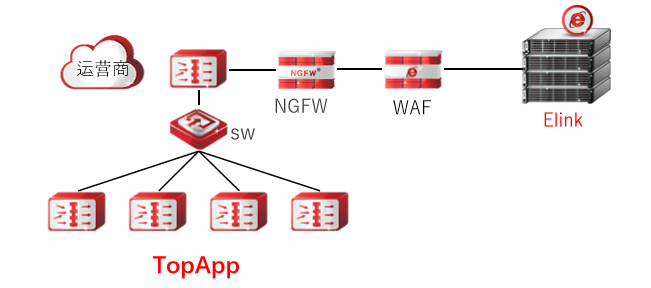

SSL Unloading Application Case in Internet Area of Nangrid Research Institute

The South Network Research Institute has the Elink system, which is accessed by HTTPS encryption. There are two A10 load balancing servers in the network. Due to insufficient unloading performance, they cannot meet the requirements of users services. The average number of new SSL connections created by Elink system exceeds 3W+, and the peak reaches 6W+

Value to Customers：: Full-scenario Load Balancing Access Speed Optimization

View details
